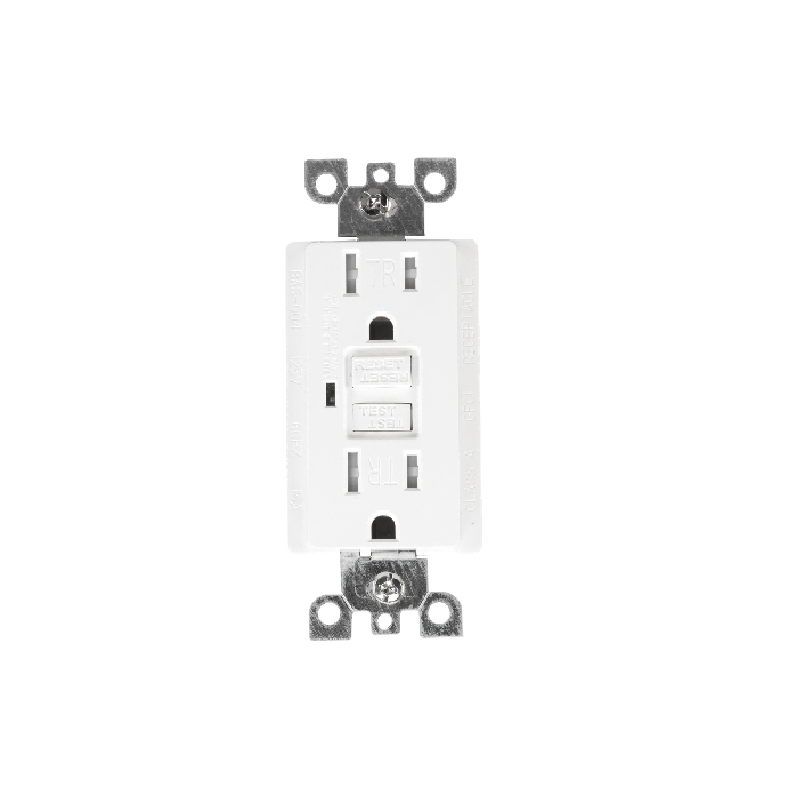

SMI 1598 TR/WR

SMI 1598 TR/WR

Category:GFCI A Ground Fault Circuit Interrupter receptacle (GFCI) is different from conventional receptacles. It will detect current leakage as ittle as 5 milliamps and shut the power off in 1/40 of a second.
In the event of a ground fault, a GFCI will trip and quickly stop the flow of electricity to prevent serious injury.
The standards for these safety products are set forth by Underwrites Laboratories(UL) in UL_943(GFCI) and UL_498 (Receptacles). Constructed with premium high-impact resistant thermoplastic materials and rational structure design, ensures superior strength and durability.
Two Indicator Light provides simple, intuitive feedback on power and protection status. If the indicator (LED) glows green, you have installed the GFCI receptacle correctly and it is working properly.
The GFCI outlet automatically conducts a self-test (the red light will blink once) every 40 seconds to ensure the GFCI is continually working. When the GFCI receptacle reaches the end of its life the red indicator will turn on, it reminds you to replace the outlet in time.
Tamper resistant (TR) - TR design increases the electrical safety level by preventing the attempting to insert objects into the outlet or open the plate.
Provides continuous ground fault protection - detects and trips on actual ground fault even when self-test is being conducted.

Specification

Item Number

Description

Rating (A.V.)

WIRES

Certificate

SMI 1598TR

Tamper proof GFCI outlet 15amp-20amp feed through

20 125

12-14AWG

UL LISTED

SMI 1598 TR/WR

Tamper proof/ weather resistant GFCI outlet 15amp-20amp feed through

20  125

12-14AWG

UL LISTED


G1900A-WH

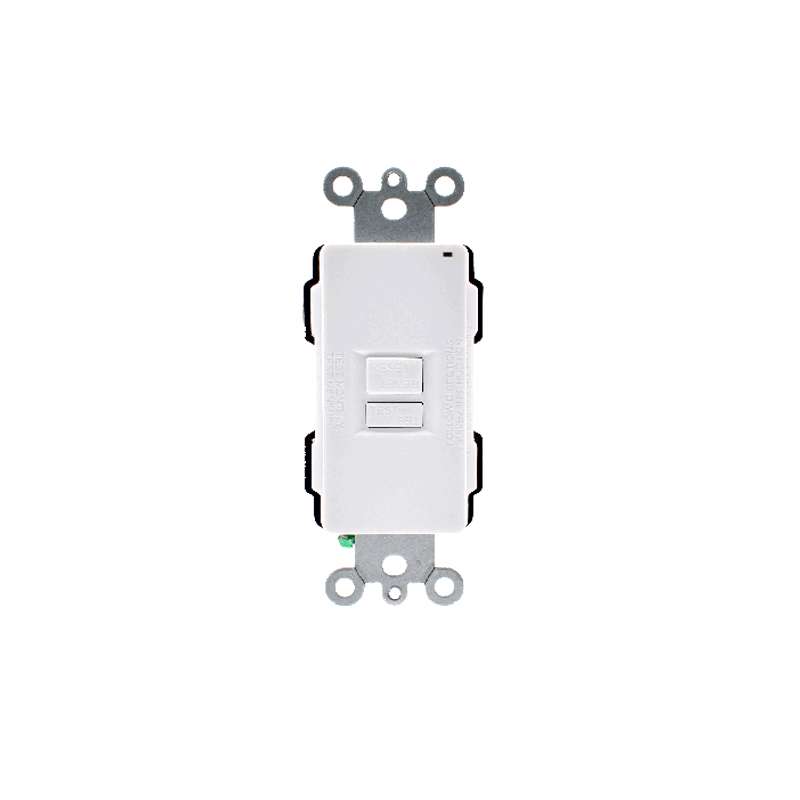

Faceless GFCI white without plate

20  125

12-14AWG

UL LISTED
